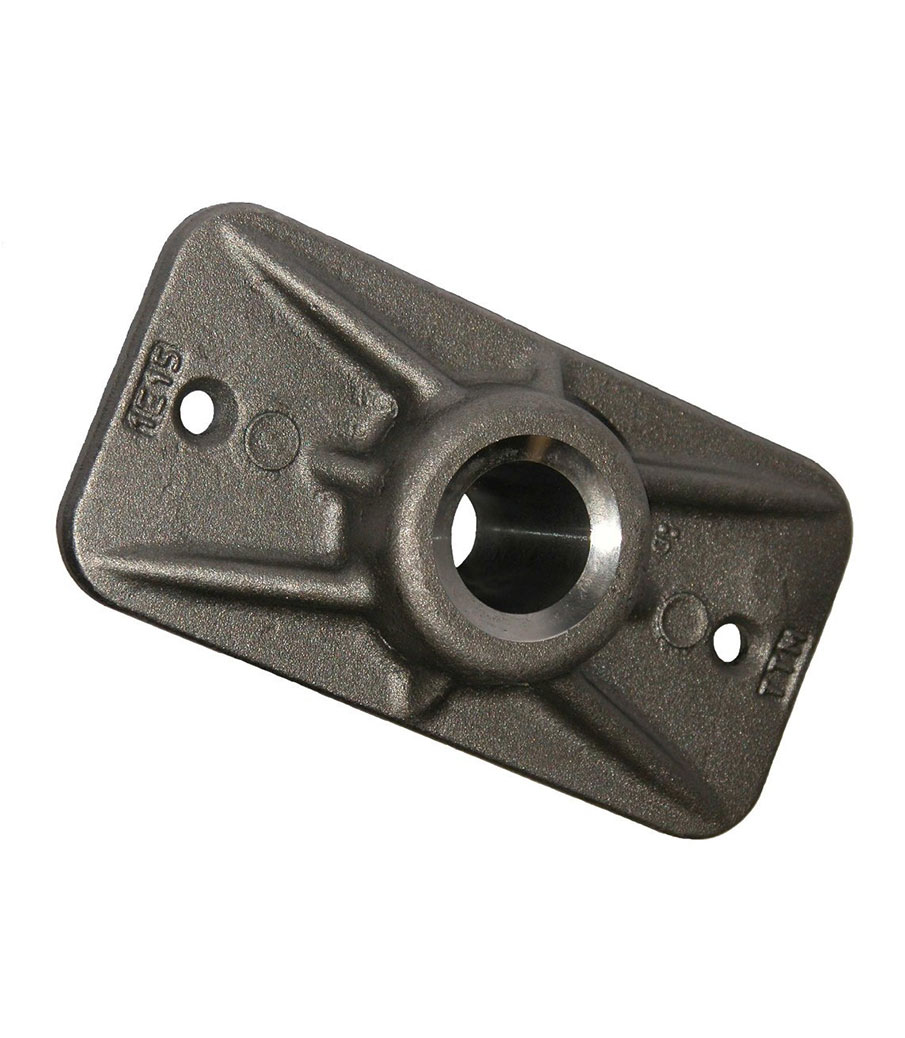

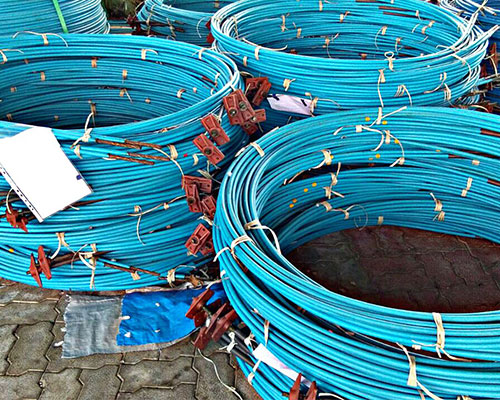

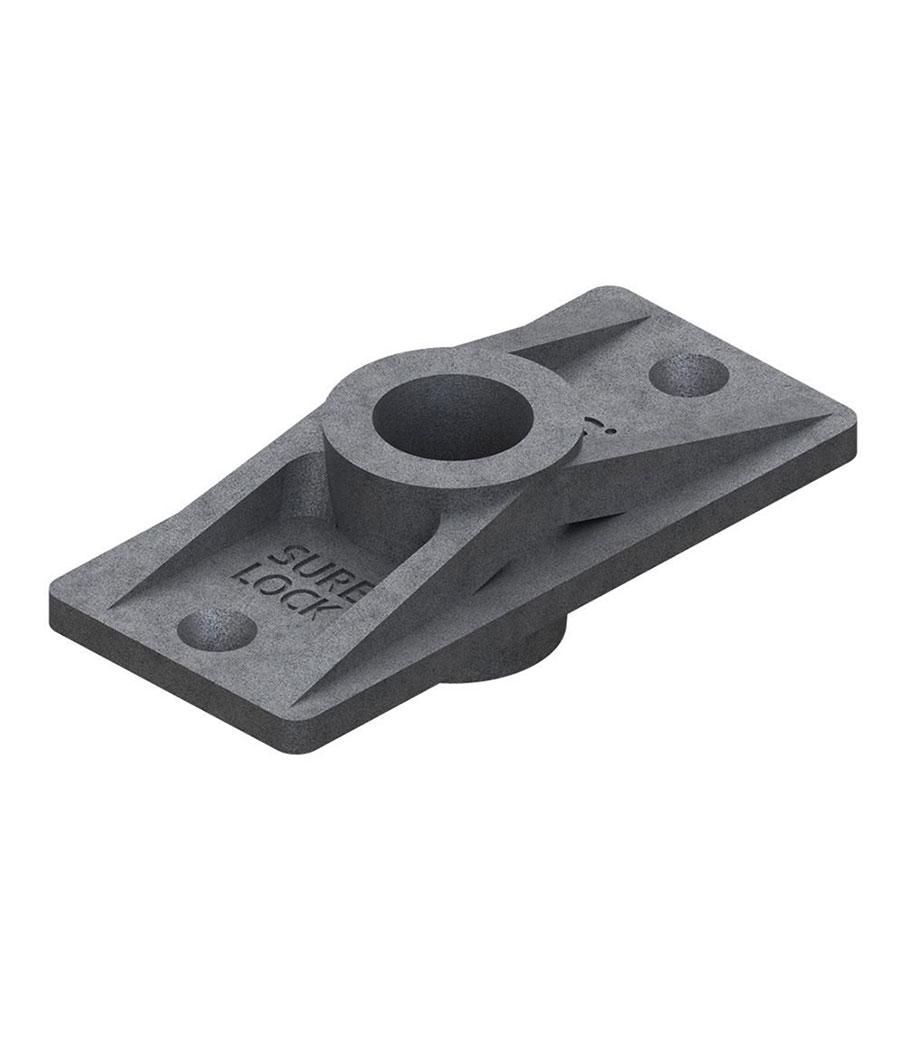

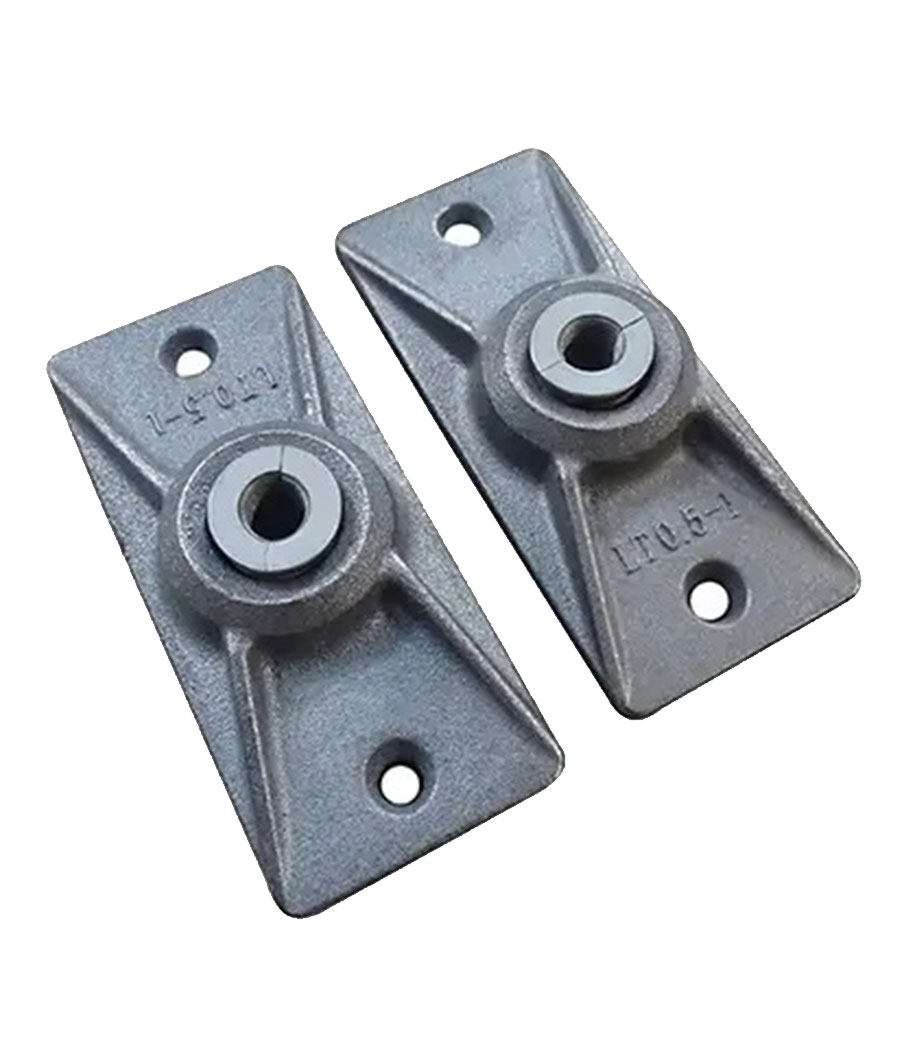

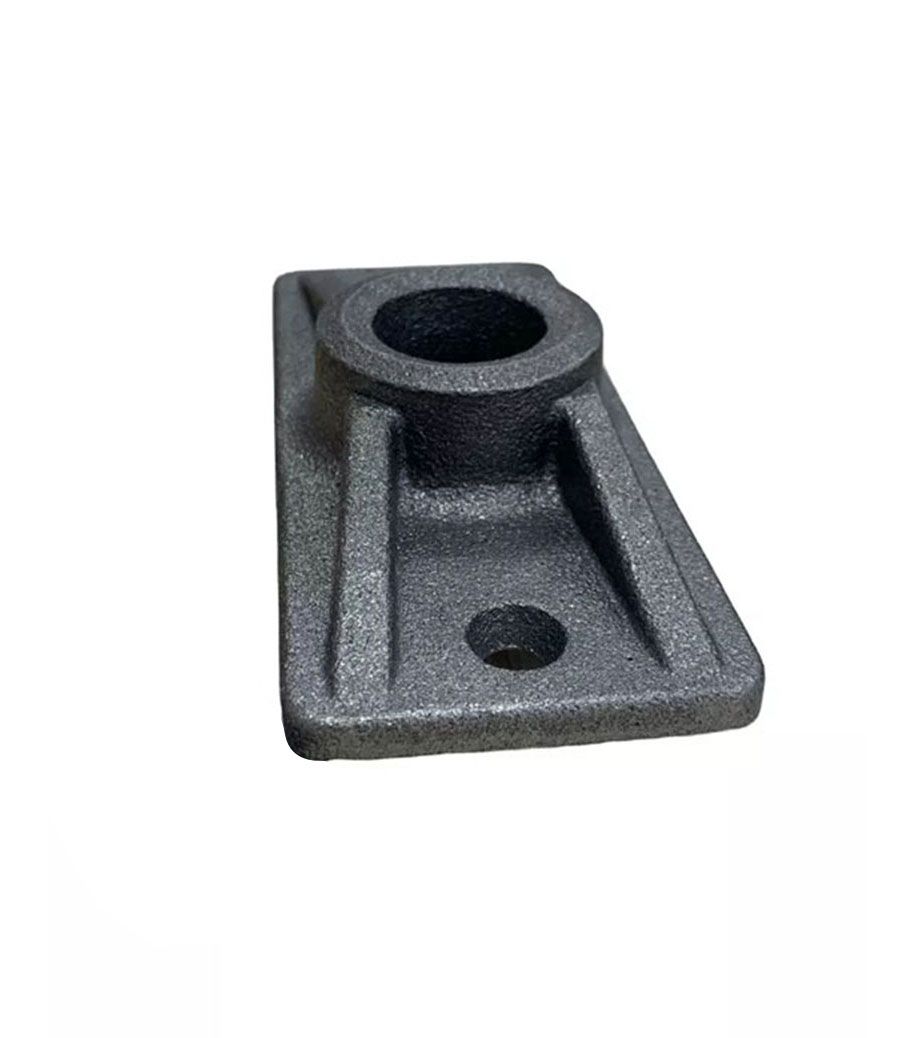

Anchor plate is an important component in post-tensioning systems. The anchor plate is utilized to secure and distribute the forces from the tensioned PT cables into the concrete structure. It helps to anchor the cables firmly in place and transfer the applied loads effectively.
When tension is applied to the PT cables, they get secured and anchored within the anchor plate. The plate distributes stresses evenly across a wider area of concrete, reducing the possibility of localised stress concentrations and improving the system's structural integrity. They are securely attached to the concrete structure with bolts or other fastening methods that match the manufacturer's standards and engineering specifications.
ASTM A536 Grade 80-55-06 or IS 1865 Grade SG 500/7 or 550/6 Casting shall be non-porous and free of sand, blow holes, voids and other defects.
Graphite Type (As per ASTM A247 Plate I & III)
OR
I. Form I & II (Spheroid or Nodular type).
II. Distribution A (Uniform Distribution).
III. Size: 6-8.
OR
Graphite Type (ISO/R 945).
I. Form VI (Spheroid or Nodular type).
II. Distribution A (Uniform Distribution).
III. Size 6-8.
Nodularity: Nodularity.
Carbide: Less than 3%.
Pearlite: 35-40%.
Hardness Number: 170-260 BHN.
